jQuery UI Widgets

VS

HTML5


TJ VanToll

Overlapping Functionality

Outline

  • The past
  • Compare widgets
    • input[type="date"] vs. datepicker
    • input[type="number"] vs. spinner
    • input[type="range"] vs. slider
  • What should you do today
  • The future

How did we get here?

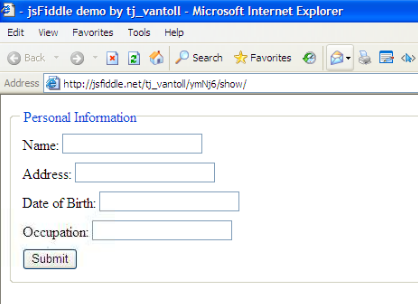

Limited Number of Form Controls

Form Controls

<input type="text">   <input type="password">
<input type="radio">  <input type="checkbox">
<input type="file">   <input type="hidden">
<input type="button"> <input type="image">
<input type="reset">  <input type="submit">
<button></button>
<select><option>option</option></select>
<textarea></textarea>

We figured out JavaScript

We made better UIs

They got standardized

Outline

  • The past
  • Compare widgets
    • input[type="date"] vs. datepicker
    • input[type="number"] vs. spinner
    • input[type="range"] vs. slider
  • What should you do today
  • The future

Datepickers

<input type="date">
<input type="text" id="datepicker-1">
<script>
    $( "#datepicker-1" ).datepicker();
</script>

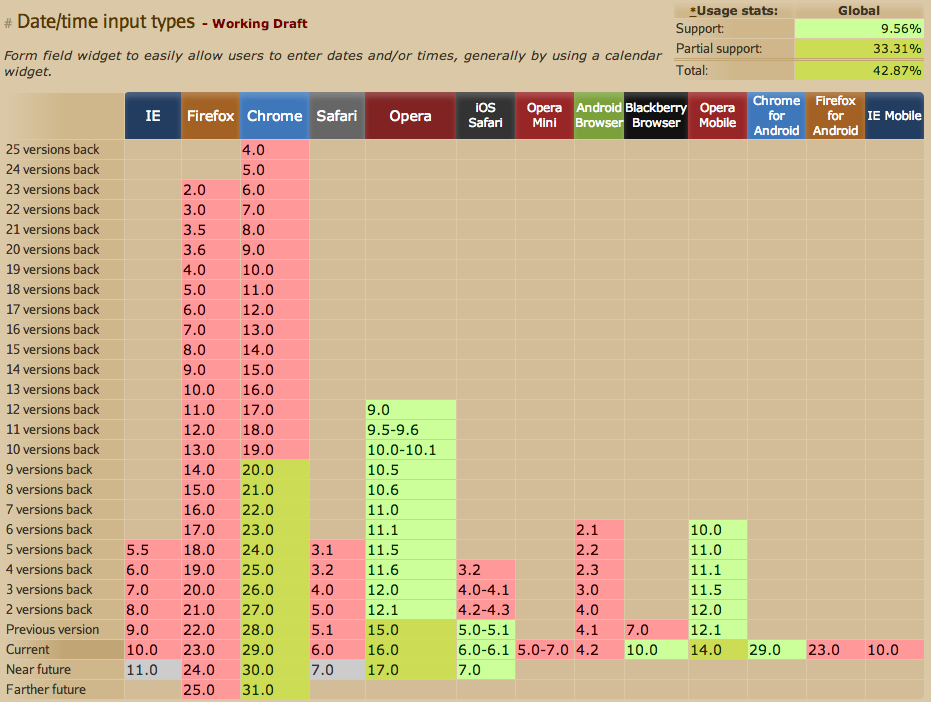

input[type=date] Support

http://caniuse.com/#feat=input-datetime

Why use input[type=date]?

  • Dependency free
  • Easy

min / max / step attributes

<form>
    <input type="date" id="date-1"
      min="2014-03-03" max="2014-03-20" step="2">
</form>

Hooks into the constraint validation API

<form>
    <input type="date" id="date-2">
    <button type="submit">Submit</button>
</form>
<script>
    var date = document.getElementById( "date-2" );
    date.addEventListener( "change", function() {
        if ( /7/.test( date.value ) ) {
            date.setCustomValidity( "NO SEVENS!" );
        } else {
            date.setCustomValidity( "" );
        }
    });
</script>

<datalist> Integration

<input type="date" id="date-3" list="dates-3">
<datalist id="dates-3">
	<option>2014-01-01</option>
    <option>2014-10-31</option>
    <option>2014-12-25</option>
</datalist>

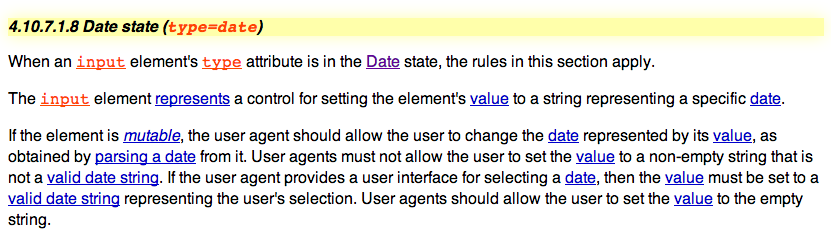

The user agent can optimize the means of input.

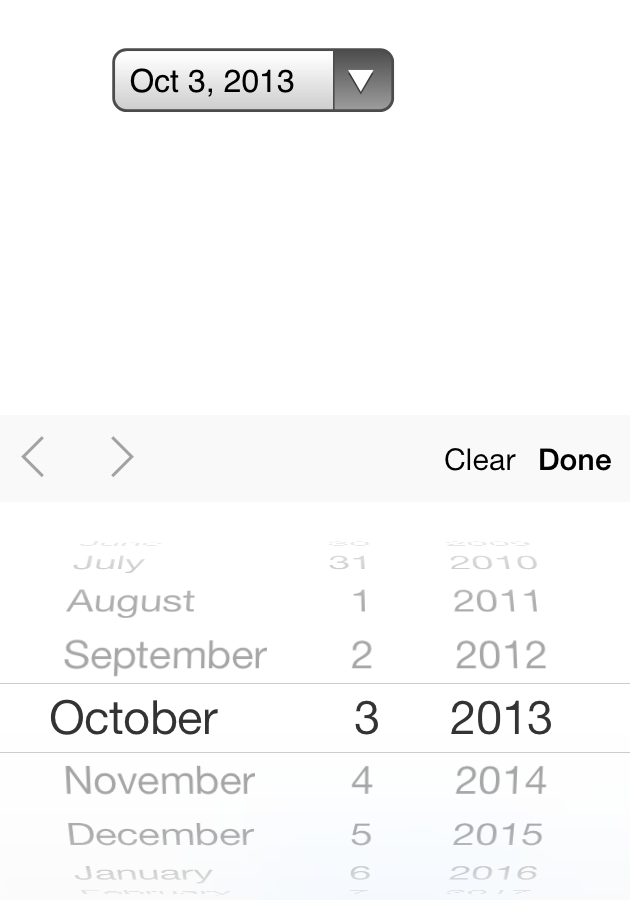

iOS 7

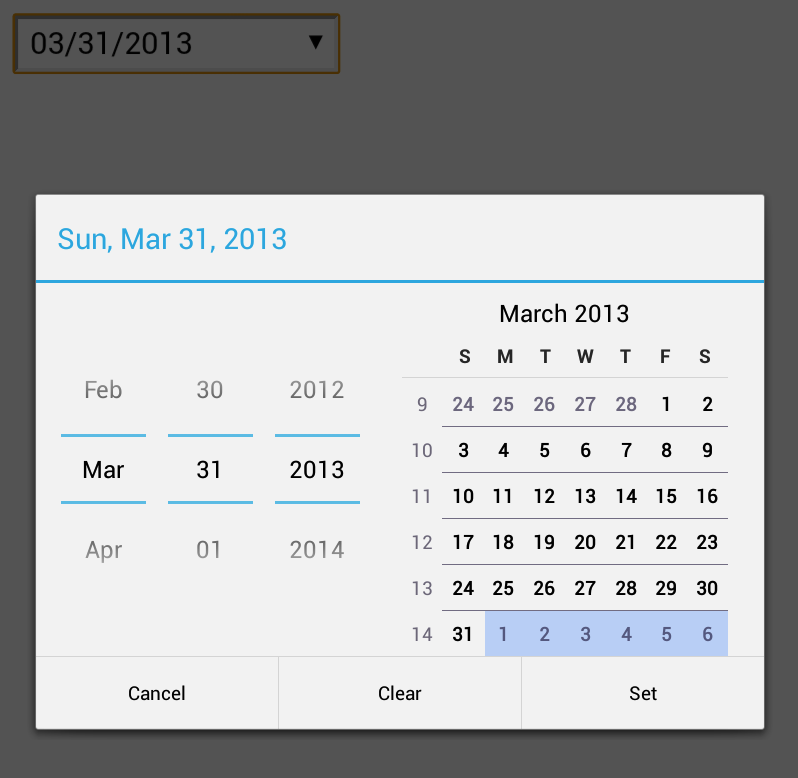

Chrome for Android

Limitations of input[type=date]

  • Lack of style-ability
  • Lack of customizability
  • Lack of extensibility
  • Browser Support

jQuery UI Datepicker

Min and max dates

<input type="text" id="date-min-max">
<script>
    $( "#date-min-max" ).datepicker({
        minDate: new Date( 2014, 01, 01 ),
        maxDate: new Date( 2014, 01, 10 )
    });
</script>

Restrict Available Days

<input type="text" id="datepicker-3">
<script>
    $( "#datepicker-3" ).datepicker({
        beforeShowDay: $.datepicker.noWeekends
    });
</script>

Themeable

<input type="text" id="themeable">
<script>
    $( "#themeable" ).datepicker();
</script>

Show Multiple Months

<input type="text" id="datepicker-2">
<script>
    $( "#datepicker-2" ).datepicker({
        numberOfMonths: 3
    });
</script>

Animate in / out

<input type="text" id="datepicker-4">
<script>
    $( "#datepicker-4" ).datepicker({
        showAnim: "fade",
        duration: 500
    });
</script>

Programmatic Control

<input type="text" id="datepicker-5">
<button id="show-5">Show</button>
<button id="hide-5">Hide</button>
<script>
    $( "#datepicker-5" ).datepicker();
    $( "#show-5" ).on( "click", function() {
        $( "#datepicker-5" ).datepicker( "show" );
    });
    $( "#hide-5" ).on( "click", function() {
        $( "#datepicker-5" ).datepicker( "hide" );
    });
</script>

Inline Datepickers

<div id="ui-inline"></div>
<script>
    $( "#ui-inline" ).datepicker();
</script>

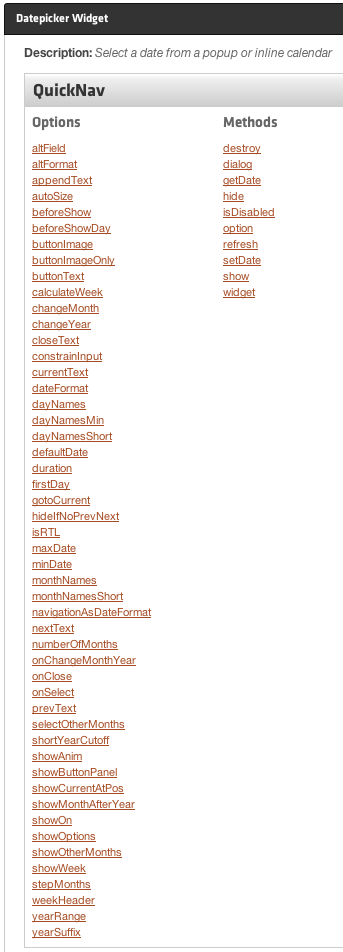

And a LOT more

api.jqueryui.com/datepicker

Just HTML on the DOM

<!-- Simplified example of markup -->
<div class="ui-datepicker">
    <div class="ui-datepicker-header">
        <a class="ui-datepicker-prev"></a>
        <a class="ui-datepicker-next"></a>
        <div class="ui-datepicker-title"></div>
    </div>
    <table class="ui-datepicker-calendar">
        <!-- etc -->
    </table>
</div>

Just HTML on the DOM

Just HTML on the DOM

jQuery Mobile Datepicker

Comparison

  • input[type=date]
    • Easy
    • Dependency free
    • Ties into other native features
    • Mobile-optimized input
  • jQuery UI's datepicker
    • Customizable
    • Extensible
    • Themeable
    • More Functionality
    • Browser Support (IE7+)

Can we get the best of both worlds?

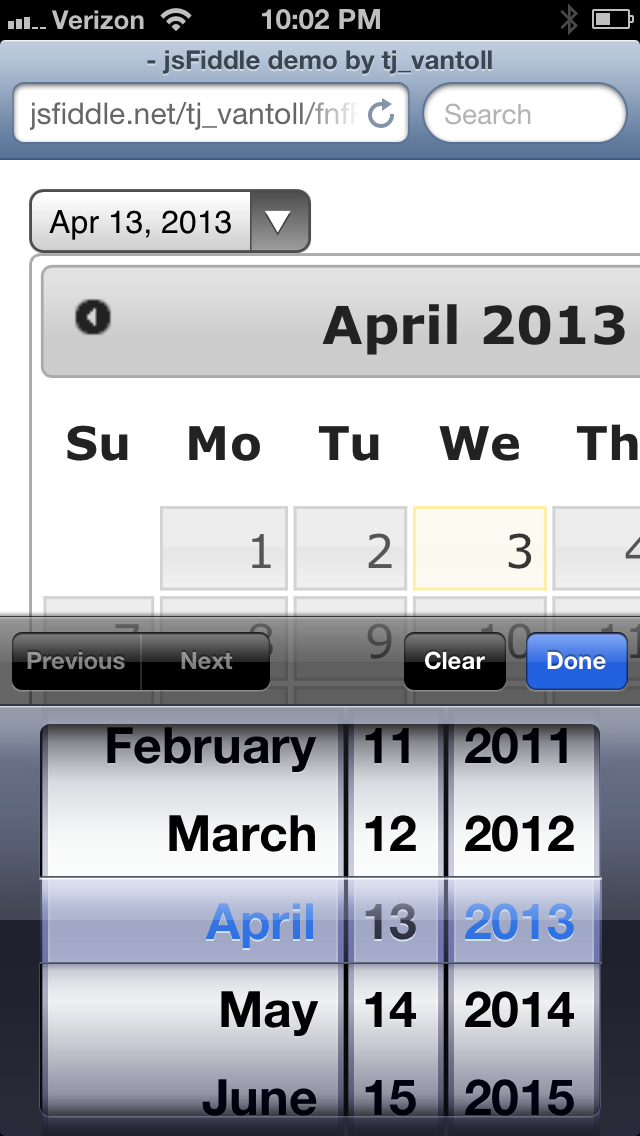

The Problem

<input type="date" id="both-pickers">
<script>
    $( "#both-pickers" ).datepicker();
</script>

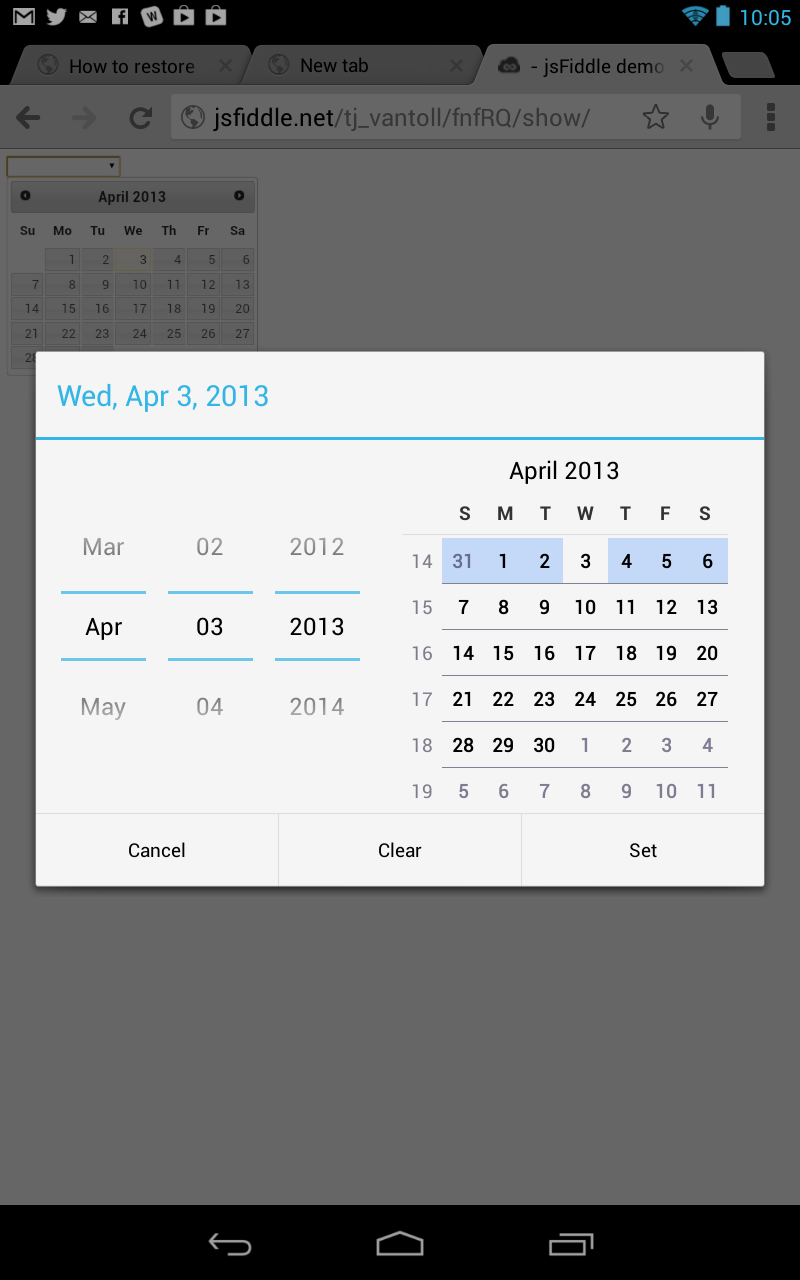

Ugh.

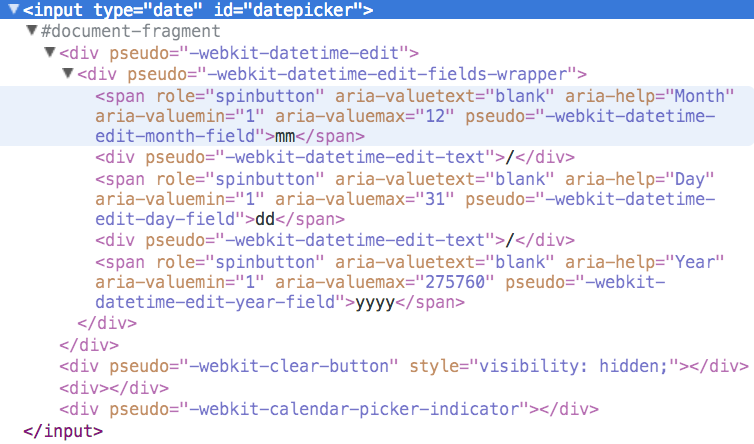

Shadow DOM to the Rescue?

Customizing Pseudo-Elements

<style>
    #date-4::-webkit-inner-spin-button {}
    #date-4::-webkit-calendar-picker-indicator {}
</style>
<input type="date" id="date-4">

Getting it to Work

<style>
    #date-5::-webkit-inner-spin-button,
    #date-5::-webkit-calendar-picker-indicator {
        display: none;
    }
</style>
<input type="date" id="date-5">
<script>
    $( "#date-5" ).datepicker({
        dateFormat: "yy-mm-dd"
    });
</script>

Available Pseudo-Elements

  • WebKit
    • ::-webkit-datetime-edit
    • ::-webkit-datetime-edit-fields-wrapper
    • ::-webkit-datetime-edit-text
    • ::-webkit-datetime-edit-month-field
    • ::-webkit-datetime-edit-day-field
    • ::-webkit-datetime-edit-year-field
    • ::-webkit-inner-spin-button
    • ::-webkit-calendar-picker-indicator
  • Presto
    • Nothing
  • Trident / Gecko
    • No input[type="date"] support

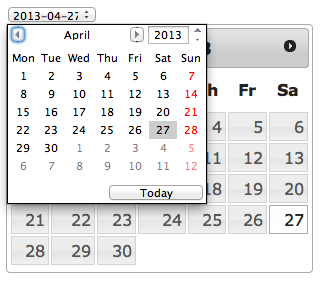

Presto

iOS 6 (Same in 7)

Chrome for Android

Can we get the best of both worlds?

No

Using datepicker as a polyfill

<input type="date" id="date">
<script>
    if ( !Modernizr.inputtypes.date ) {
        $( "#date" ).datepicker({
            dateFormat: "yy-mm-dd"
        });
    }
</script>

Outline

  • The past
  • Compare widgets
    • input[type="date"] vs. datepicker
    • input[type="number"] vs. spinner
    • input[type="range"] vs. slider
  • What should you do today
  • The future

Number Pickers

<input type="number">
<input type="text" id="spinner">
<script>
    $( "#spinner" ).spinner();
</script>

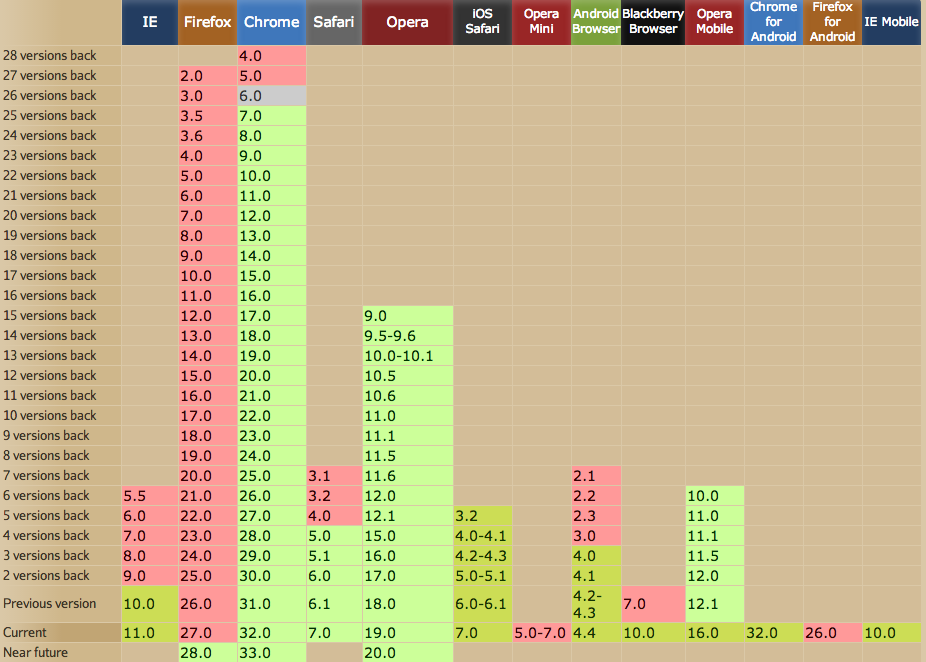

input[type=number] Support

http://caniuse.com/#feat=input-number

Why use input[type=number]?

  • Easy
  • Dependency free

Optimized Mobile Input

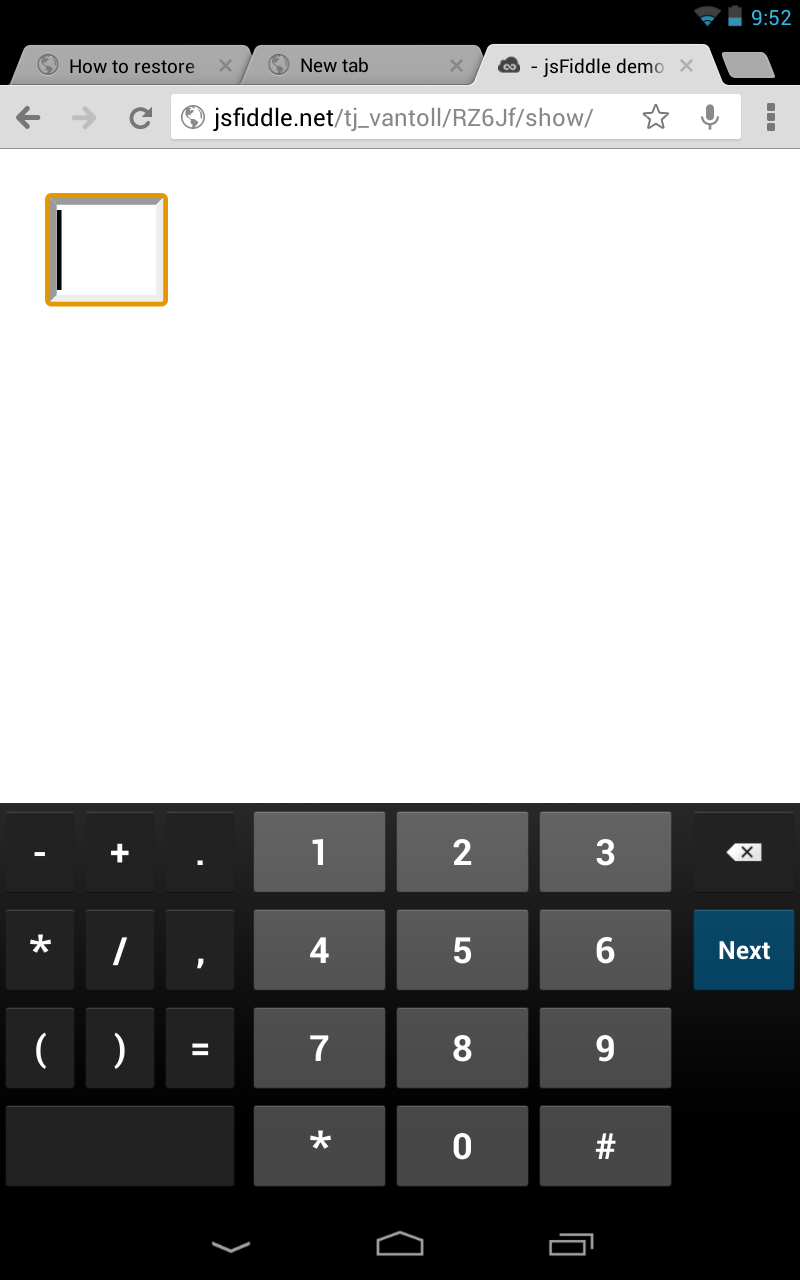

Chrome for Android

<input type="number">

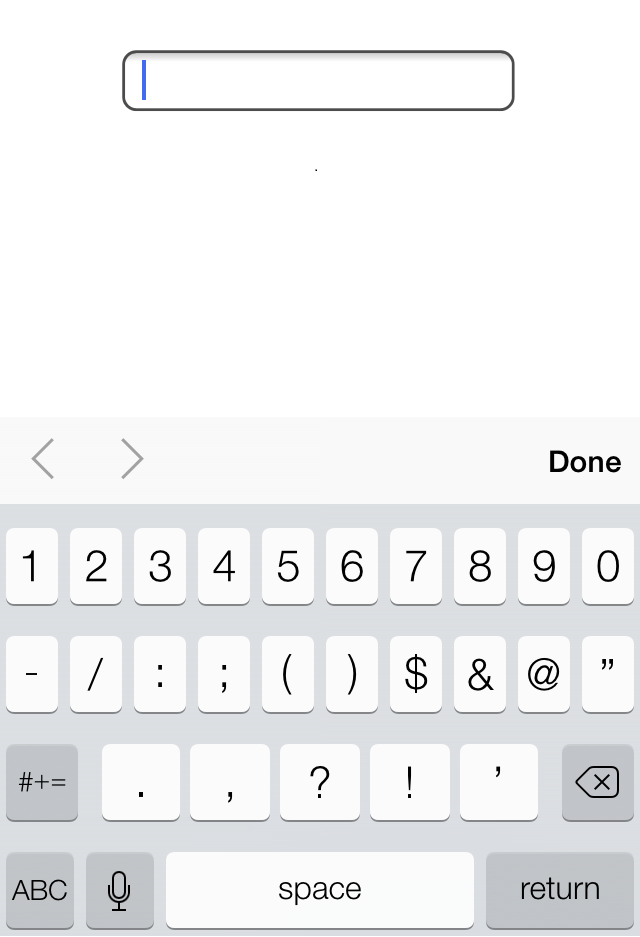

iOS 7

<input type="number">

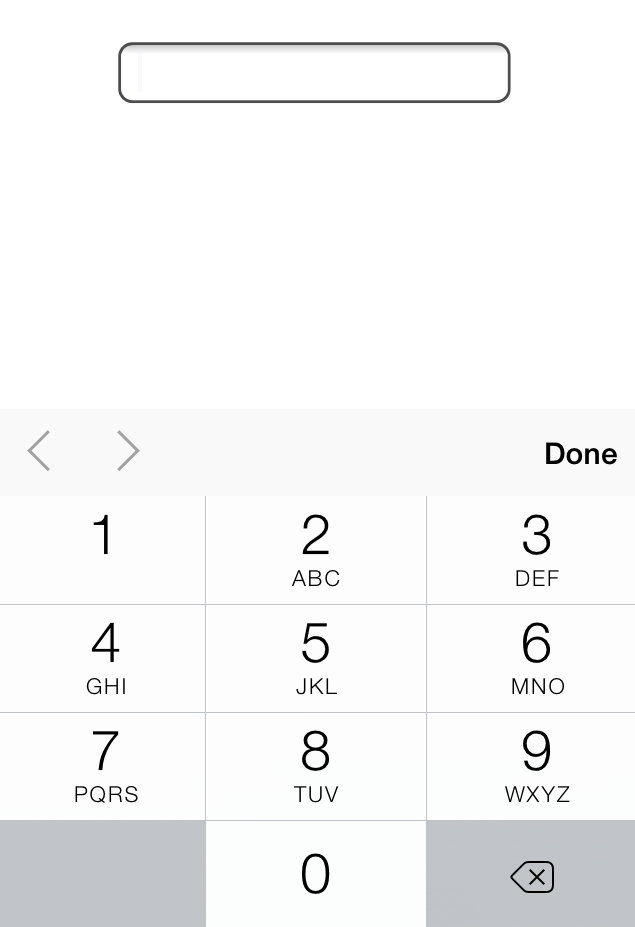

iOS 7

<input type="number" pattern="[0-9]*">

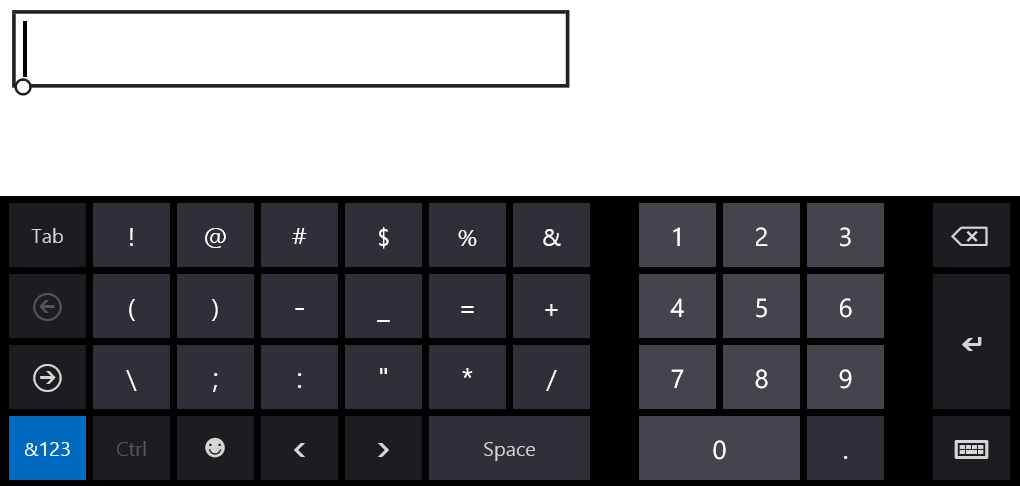

IE10 Mobile

<input type="number">

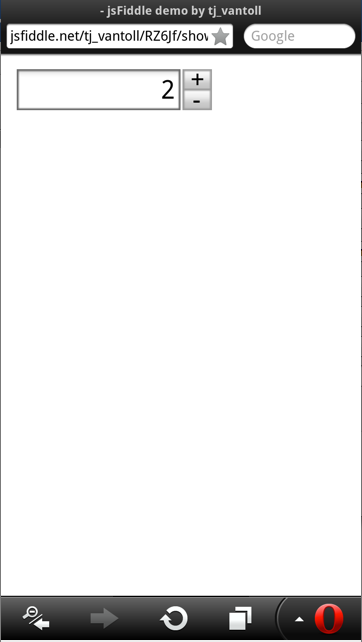

Opera Mobile (pre-Blink)

<input type="number" min="2" max="8" step="2">

min / max / step attributes

<input type="number" id="number-1"
      min="0" max="10" step="2">

Hooks into the constraint validation API

<form>
    <input type="number" id="number-2" min="0"
      max="10" step="2">
    <button type="submit">Submit</button>
</form>

<datalist> Integration

<input type="number" id="number-3" list="numbers-3">
<datalist id="numbers-3">
	<option>40</option>
    <option>41</option>
    <option>42</option>
</datalist>

Limitations of input[type=number]

  • Lack of style-ability
  • Lack of customizability
  • Lack of extensibility
  • Browser Support

jQuery UI Spinner

min / max / step attributes

<input type="text" id="spinner-attrs"
  min="2" max="10" step="2">
<script>
    $( "#spinner-attrs" ).spinner();
</script>

Themeable

<input type="text" id="spinner-theme">
<script>
    $( "#spinner-theme" ).spinner();
</script>

Paging

<input type="text" id="spinner-1">
<script>
    $( "#spinner-1" ).spinner({
        page: 10
    });
</script>

Currency + i18n

<input type="text" id="spinner-2">
<script>
    $( "#spinner-2" ).spinner({
        min: 25,
        max: 2500,
        step: 25,
        numberFormat: "C",
        culture: "en"
    });
</script>

Time Picker

$.widget( "ui.timespinner", $.ui.spinner, {
    options: {
        // seconds
        step: 60 * 1000,
        // hours
        page: 60
    },

    _parse: function( value ) {
        if ( typeof value === "string" ) {
            // already a timestamp
            if ( Number( value ) == value ) {
                return Number( value );
            }
            return +Globalize.parseDate( value );
        }
        return value;
    },

    _format: function( value ) {
        return Globalize.format( new Date(value), "t" );
    }
});

Time Picker Example

<input type="text" id="spinner-4"
  value="08:00 PM">
<script>
    Globalize.culture( "en" );
    $( "#spinner-4" ).timespinner();
</script>

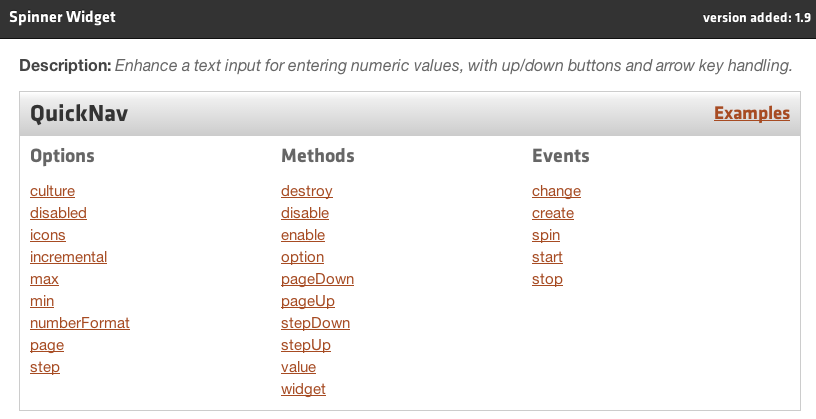

And More...

api.jqueryui.com/spinner

Just HTML on the DOM

Can we get the best of both worlds?

Both Number Spinners?

<input type="number" id="spinner-both">
<script>
    $( "#spinner-both" ).spinner();
</script>

Shadow DOM to the Rescue!

<input type="number" id="number-4">
<style>
    #number-4::-webkit-outer-spin-button,
    #number-4::-webkit-inner-spin-button {
        display: none;
    }
</style>
<script>
    $( "#number-4" ).spinner();
</script>

Firefox 28

Can we get the best of both worlds?

No

Using spinner as a polyfill

<input type="number" id="number-picker">
<script>
    if ( !Modernizr.inputtypes.number ) {
        $( "#number-picker" ).spinner();
    }
</script>

Outline

  • The past
  • Compare widgets
    • input[type="date"] vs. datepicker
    • input[type="number"] vs. spinner
    • input[type="range"] vs. slider
  • What should you do today
  • The future

Range Pickers

<input type="range">
<div id="slider"></div>
<script>
    $( "#slider" ).slider();
</script>

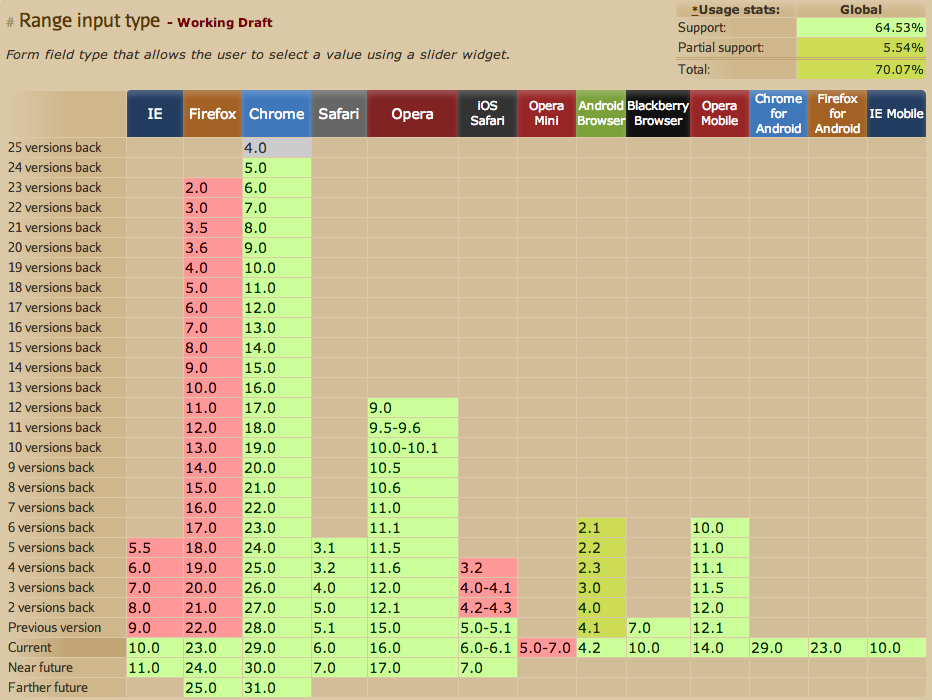

input[type=range] Support

http://caniuse.com/#feat=input-range

Optimized Input

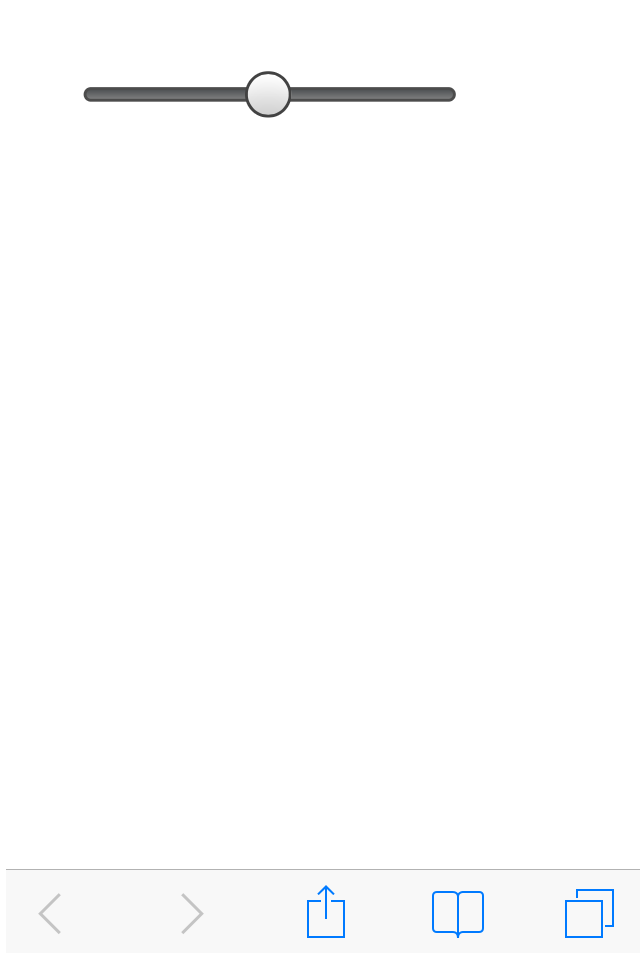

iOS 7

<input type="range">

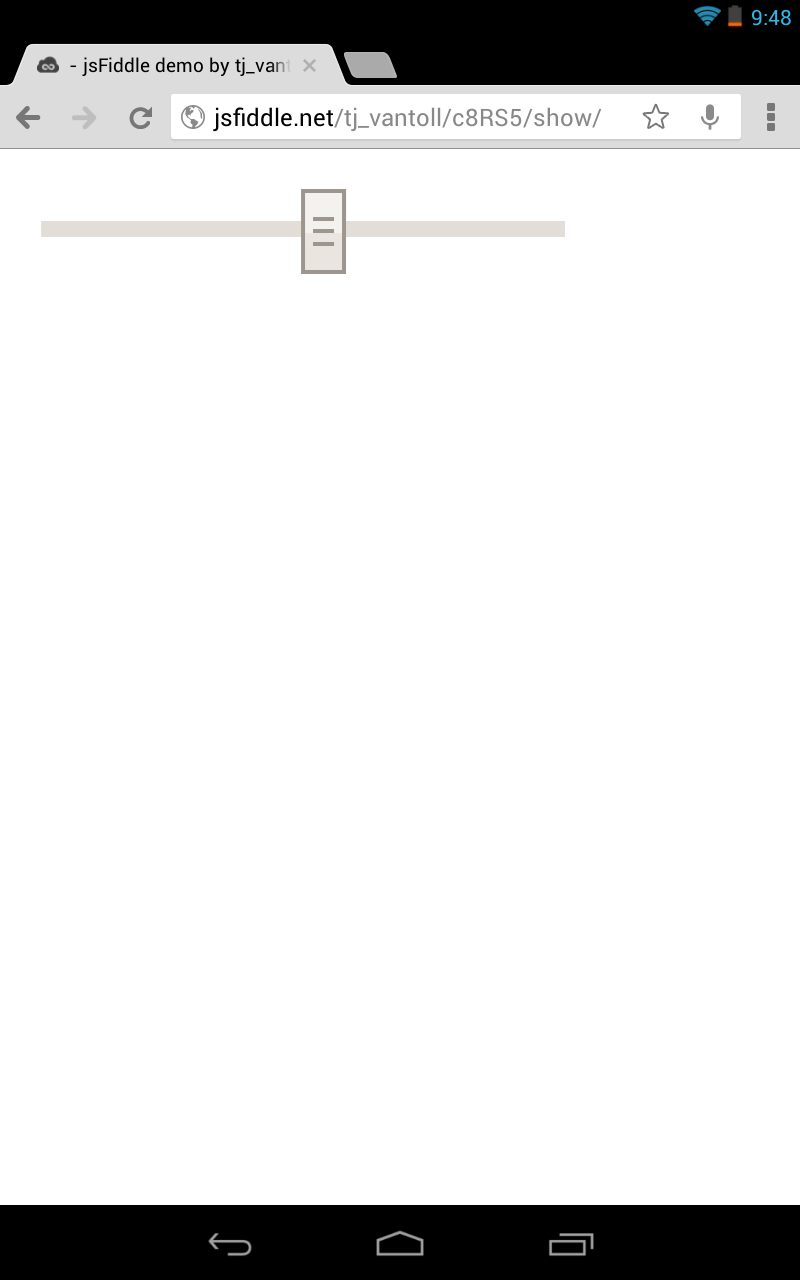

Chrome for Android

<input type="range">

IE10, IE11

<input type="range">

min / max / step attributes

<input type="range" id="range-1"
  min="0" max="100" step="20" value="0">
<output>0</output>
<script>
    $( "#range-1" ).on( "change", function() {
        $( this ).next( "output" )
           .val( $( this ).val() );
    });
</script>

Datalist Integration

<input type="range" list="range-options">
<datalist id="range-options">
    <option value="10"></option>
    <option value="40"></option>
    <option value="70"></option>
</datalist>

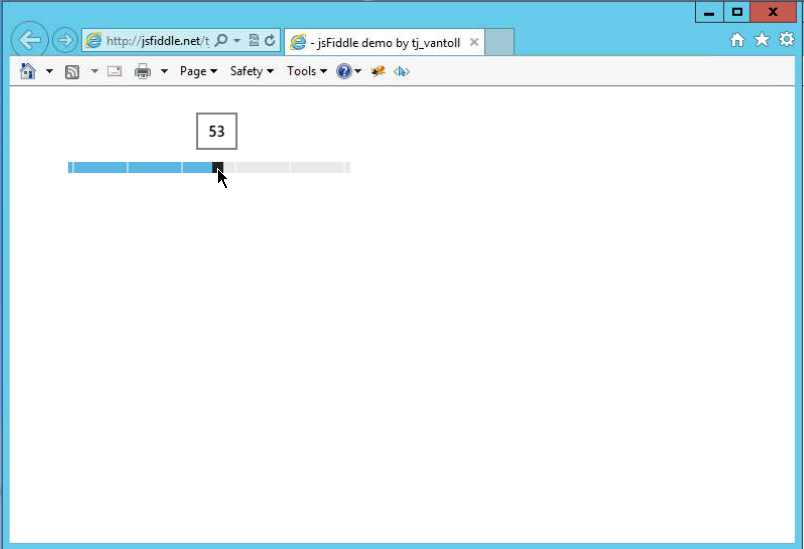

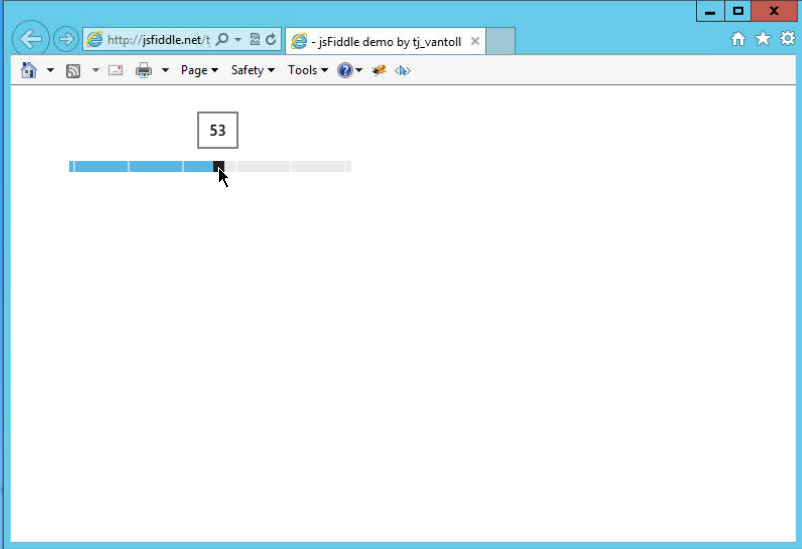

Datalists in IE10, IE11

Pseudo-Elements

  • Gecko
    • ::-moz-range-track
    • ::-moz-range-thumb
  • Trident
    • ::-ms-fill-lower
    • ::-ms-fill-upper
    • ::-ms-thumb
    • ::-ms-ticks-after
    • ::-ms-ticks-before
    • ::-ms-track
    • ::-ms-tooltip
  • WebKit
    • ::-webkit-slider-runnable-track
    • ::-webkit-slider-thumb

Range pseudo-elements

<input type="range" id="pseudo-range">
<style>
    #pseudo-range::-webkit-slider-runnable-track {
        background: blue;
    }
    #pseudo-range::-webkit-slider-thumb {
        outline: 5px solid green;
    }
</style>

Pseudo-Elements

jQuery UI Slider

min / max / step

<div id="slider-attrs"></div>
<script>
    $( "#slider-attrs" ).slider({
        min: 0,
        max: 100,
        step: 20
    });
</script>

Themeable

<div id="slider-theme"></div>
<script>
    $( "#slider-theme" ).slider();
</script>

Multiple Handles

<div id="slider-3"></div>
<script>
    $( "#slider-3" ).slider({
        values: [10, 40, 70]
    });
</script>

Ranges

<div id="slider-4"></div>
<script>
    $( "#slider-4" ).slider({
        range: true,
        min: 0,
        max: 100,
        values: [20, 80]
    });
</script>

Animation

<div id="slider-5"></div>
<script>
    $( "#slider-5" ).slider({
        animate: true
    });
</script>

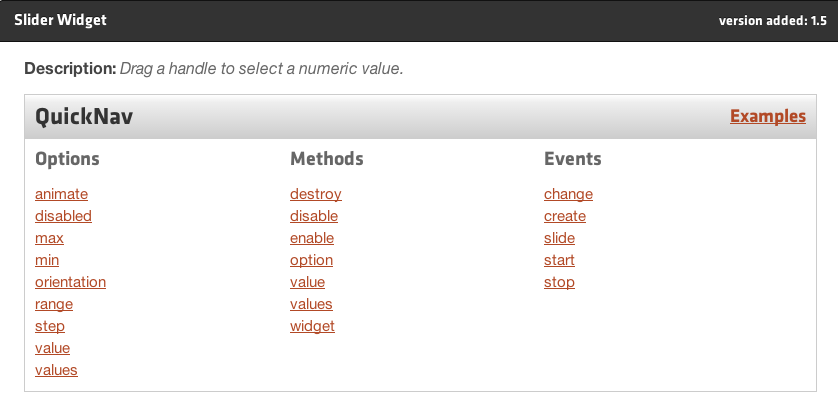

And more...

api.jqueryui.com/slider

Just HTML on the DOM

Extensible

By @ignaty
Check out this Pen!

Using slider as a polyfill

http://tjvantoll.com/2012/09/14/using-jquery-ui-slider-to-polyfill-html5-input-type-range/

Outline

  • The past
  • Compare widgets
    • input[type="date"] vs. datepicker
    • input[type="number"] vs. spinner
    • input[type="range"] vs. slider
  • What should you do today
  • The future

To Summarize...

Native Features

  • Easy
  • Dependency Free
  • User-Agent Optimized Input
  • Hooks into Other Native Functionality
  • Lack of browser support
  • Not styleable / themeable
  • Not customizable
  • Not extensible

JS Widgets vs. Native Elements

You have to pick one or the other.

What to pick?

  • Native Element
    • Simple
    • High % mobile users
  • JS Widgets
    • Non-trivial requirements
    • Comprehensive browser support

Fallback - Option 1

<input type="date" id="date">
<script>
    if ( !Modernizr.inputtypes.date ) {
        $( "#date" ).datepicker({
            dateFormat: "yy-mm-dd"
        });
    }
</script>

Fallack - Option 2

<input type="date" id="date">
<script>
    if ( !Modernizr.inputtypes.date ) {
        $( "#date" ).after( "<p>In yy-mm-dd format</p>" );
    }
</script>

Other Libraries

Outline

  • The past
  • Compare widgets
    • input[type="date"] vs. datepicker
    • input[type="number"] vs. spinner
    • input[type="range"] vs. slider
  • What should you do today
  • The future

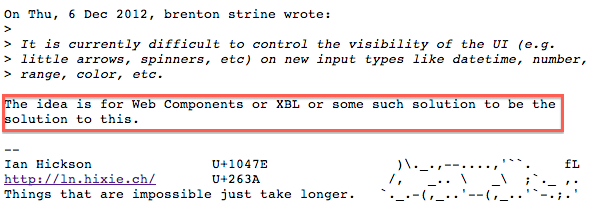

Solutions?

<input type="date" ui="false">

Future Solutions

Add a new shadow root to an <input> (Chrome 31+).

<style>
    #shadow-date {
        height: 1em;
        width: 10em;
    }
</style>
<input type="date" id="shadow-date">
<script>
    var root = document.getElementById( "shadow-date" )
        .webkitCreateShadowRoot();
    $( "#shadow-date" ).datepicker({
        dateFormat: "yy-mm-dd",
        onSelect: function( dateText ) {
            root.innerHTML = dateText;
        }
    });
</script>

Future Solutions

  • Custom elements are part of web components specification.
  • Eventually, custom form elements will be possible.
  • Not part of the specification yet.

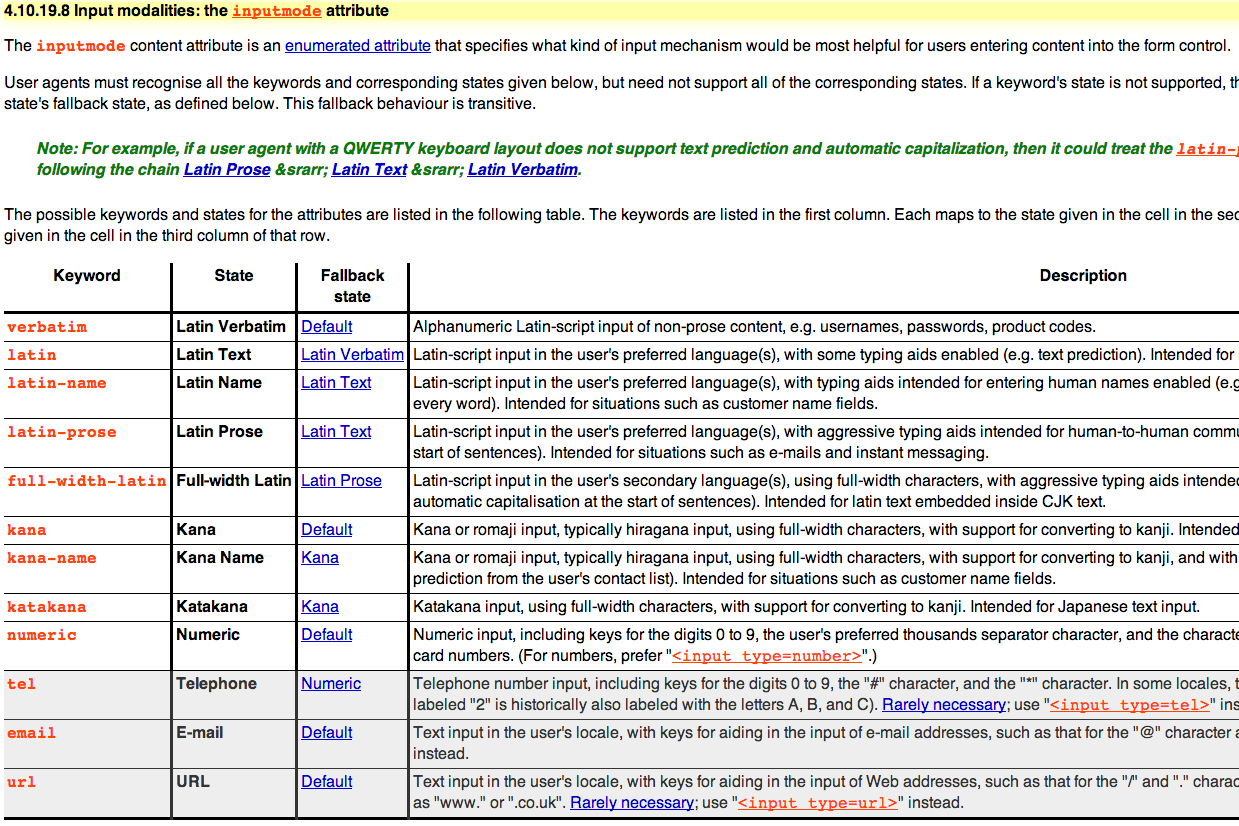

inputmode Attribute

http://www.whatwg.org/specs/web-apps/current-work/multipage/association-of-controls-and-forms.html#input-modalities:-the-inputmode-attribute

How jQuery UI / Kendo UI can help

stepUp() / stepDown()

<input type="number" id="number-step" value="1">
<script>
    document.getElementById( "number-step" ).stepUp( 3 );
</script>

Range Orientation

<input type="range" id="range-orientation">
<style>
    #range-orientation {
        /* -webkit-appearance: slider-vertical; */
        width: 10px;
        height: 100px;
    }
</style>

Sane Orientation API

<div id="slider-2"></div>
<script>
    $( "#slider-2" ).slider({
        orientation: "vertical"
    });
</script>
https://twitter.com/scott_gonzalez/status/316991019193335809

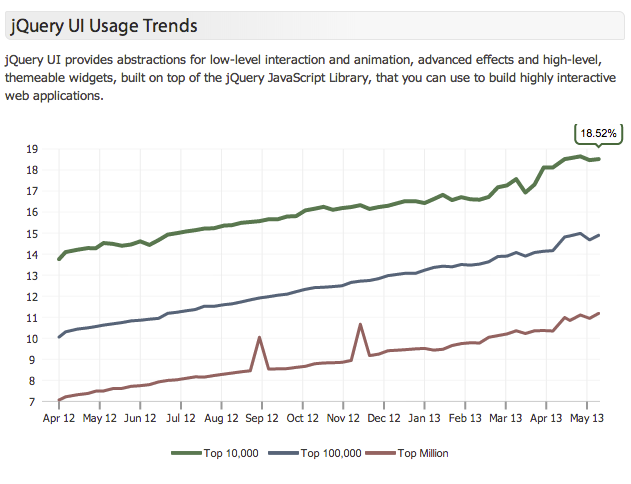

jQuery UI Usage

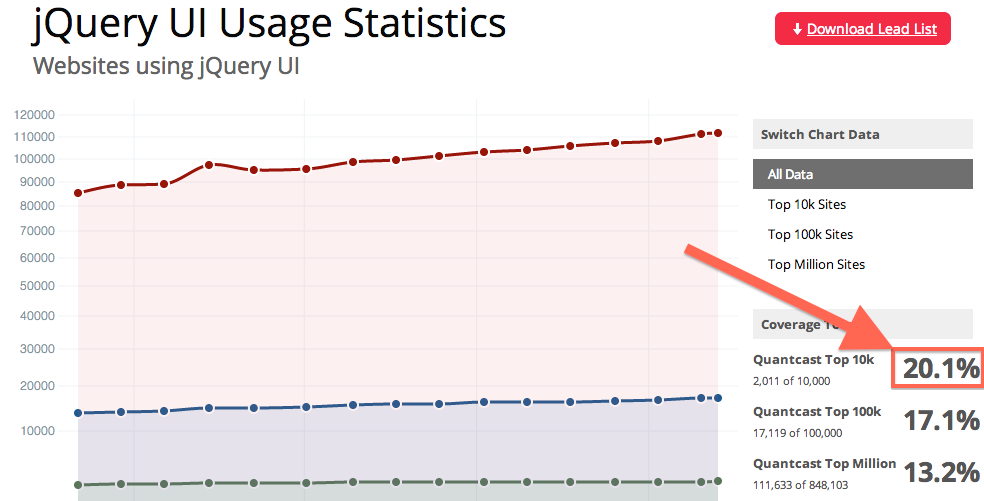

jQuery UI Usage (2014)

http://trends.builtwith.com/javascript/jQuery-UI

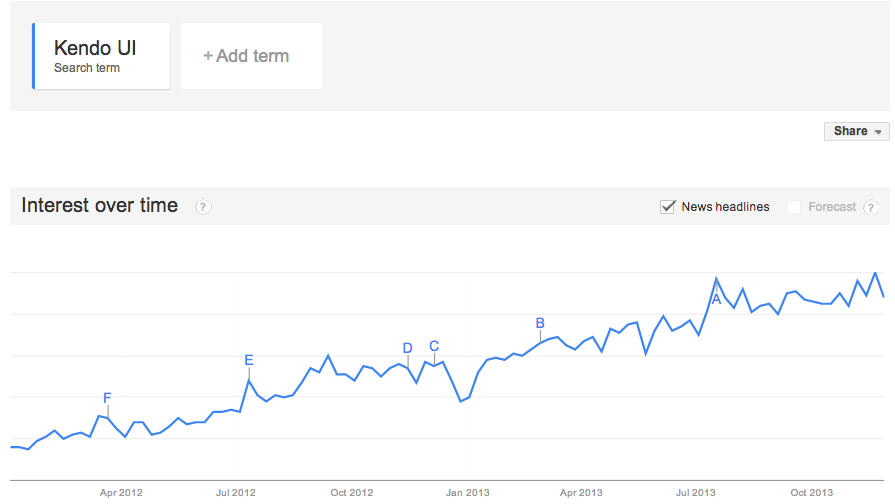

Kendo UI Usage (2012-2013)

http://trends.google.com

Want to Help?

http://jqueryui.com/development/

<shameless-plug>


http://manning.com/vantoll

</shameless-plug>

Thanks
